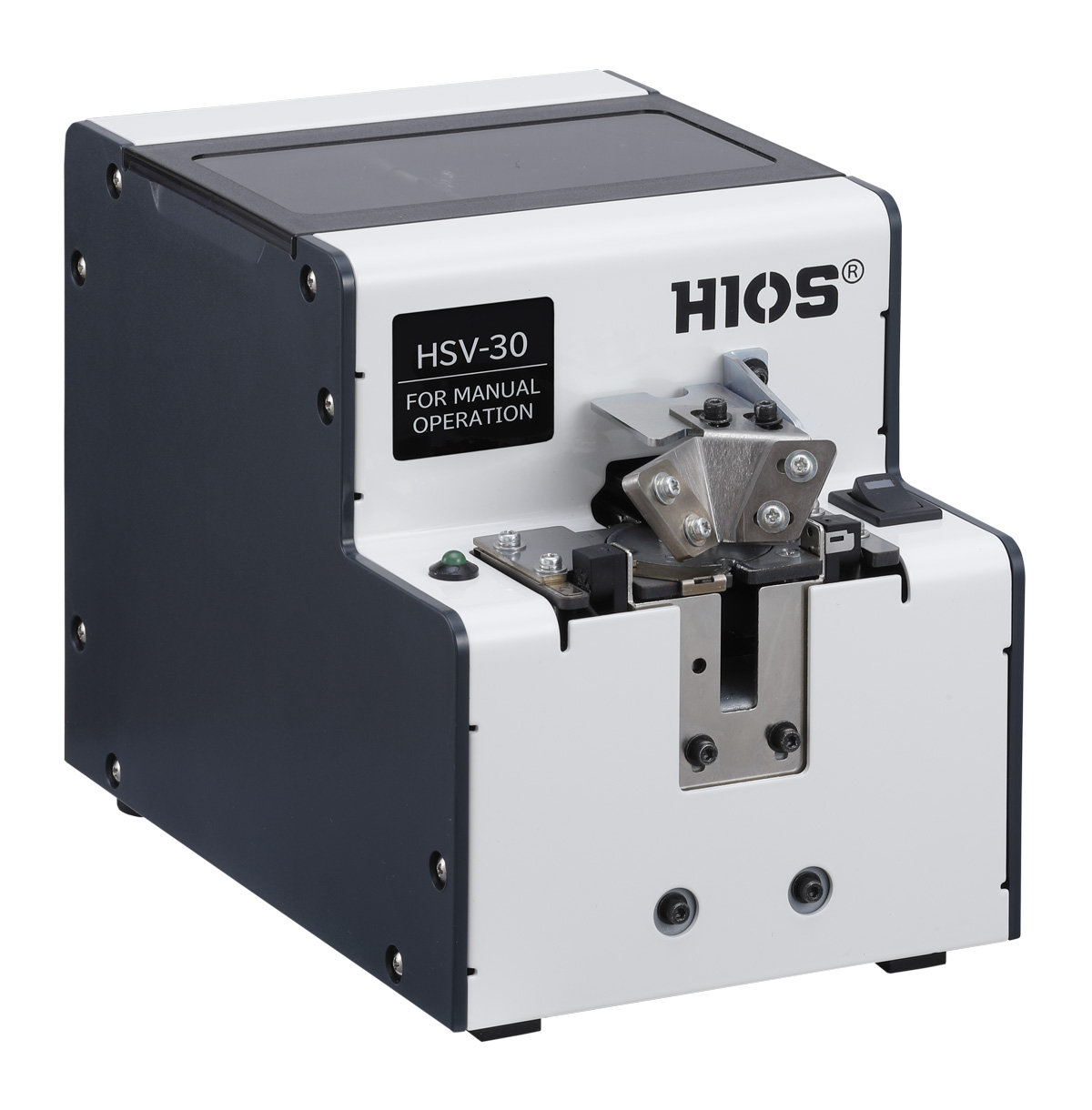

For manual operation HSV (8 Models in Total)

※This is just a sample image

Feature

Neji Taro aligns screws!
The work efficiency of a production line will be dramatically improved.

● A single unit can handle eight screw sizes by simply replacing the rail.
● The rotary escaper has been adopted to take out screws.
　・ It has realized stable catching of screws by eliminating tangling of screws.
● Quickly catches unstable screws.
・ For examples, countersunk screws, screws with washer and thinner head screws can be handled
● Compatible with suction types (for automatic assembly machines)

For manual operation HSV (8 Models in Total)

Specification

Download

Power Supply Input output	Weight(g)	Screw capacity	Over load protection circuit	Model Number	External Dimensions(mm)	Driver type	Accessories
AC100-240V (50/60Hz) DC15V 1A	About 3kg (including the rail)	80cc	Reverse rotation when overloaded, Forward rotation when restored	HSV-10 (M1.0) HSV-12 (M1.2) HSV-14 (M1.4) HSV-17 (M1.7) HSV-20 (M2.0) HSV-23 (M2.3) HSV-26 (M2.6) HSV-30 (M3.0)	123(W)×181(D)×145(H)	For manual operation	1 installed standard rail, 2 guide plates (1 installed), 1 hexagonal wrench (width across flats 2mm), 1 screwdriver (for timer adjustment), 2 escaper guides for robot (1 installed), 1 AC adapter

Power Supply

Input
output

Weight(g)

Screw capacity

Over load protection circuit

Model Number

External Dimensions(mm)

Driver type

Accessories

AC100-240V (50/60Hz)
DC15V 1A

About 3kg (including the rail)

80cc

Reverse rotation when overloaded, Forward rotation when restored

HSV-10 (M1.0)
HSV-12 (M1.2)
HSV-14 (M1.4)
HSV-17 (M1.7)
HSV-20 (M2.0)
HSV-23 (M2.3)
HSV-26 (M2.6)
HSV-30 (M3.0)

123(W)×181(D)×145(H)

For manual operation

1 installed standard rail, 2 guide plates (1 installed), 1 hexagonal wrench (width across flats 2mm), 1 screwdriver (for timer adjustment), 2 escaper guides for robot (1 installed), 1 AC adapter

Range of screws
that can be supplied

Model			Nominal screw diameter	(D)Head diameter(∅)	(H) Head thickness(mm)	(L)Shaft length(mm)
Feeder Unit only	Feeder Unit (with rail unit)	Rail unit only	Nominal screw diameter	(D)Head diameter(∅)	(H) Head thickness(mm)	(L)Shaft length(mm)
HSV	HSV-10 (with HSV-BI-10)	HSV-BI-10	M1.0	1.8-4.5	0.35-1.0	1.6-10
	HSV-12 (with HSV-BI-12)	HSV-BI-12	M1.2	1.8-4.5	0.35-1.0	1.9-10
	HSV-14 (with HSV-BI-14)	HSV-BI-14	M1.4	2.0-4.5	0.35-1.0	2.2-10
	HSV-17 (with HSV-BI-17)	HSV-BI-17	M1.7	2.5-4.5	0.35-1.0	2.7-10
	HSV-20 (with HSV-BI-20)	HSV-BI-20	M2.0	3.0-6	0.35-4.5	3.2-20
	HSV-23 (with HSV-BI-23)	HSV-BI-23	M2.3	3.3-6	0.35-4.5	3.7-20
	HSV-26 (with HSV-BI-26)	HSV-BI-26	M2.6	3.6-6	0.35-4.5	4.2-20
	HSV-30 (with HSV-BI-30)	HSV-BI-30	M3.0	4.0-6	0.35-4.5	4.8-20

Series Comparison

Model	Screw capacity	Over load protection circuit	Driver type
For manual operation HSV (8 Models in Total)	80cc	Reverse rotation when overloaded, Forward rotation when restored	For manual operation
For automatic assembly machines HSV-RB (8 Models in Total)	80cc	Reverse rotation when overloaded, Forward rotation when restored	For automatic assembly machines
