For automatic assembly machines HS-RB (3 Models in Total)

  • HS Series
Distributor
Document Request

Feature

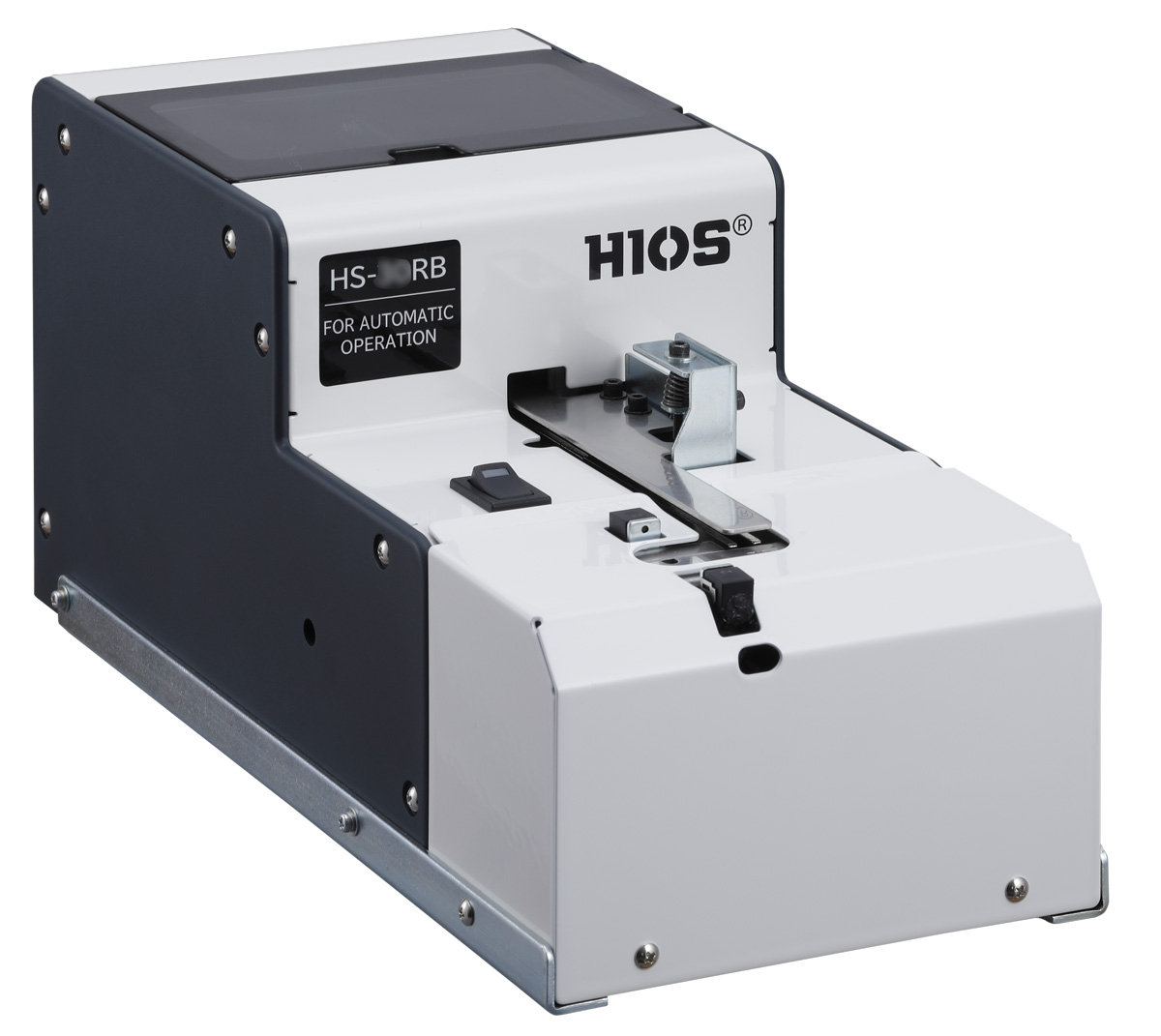

Neji Taro aligns screws!
The work efficiency of a production line will be dramatically improved.

● A single unit can handle three screw diameters by changing rails.
● It has a large screw capacity of 150cc.
● Compatible with the suction type (for automatic assembly machines)

For automatic assembly machines HS-RB (3 Models in Total)

Specification

Download

Power Supply

  • Input

  • output

Weight(g)

Screw capacity

Over load protection circuit

Model Number

External Dimensions(mm)

Driver type

Accessories

  • AC100V ±5％ (50/60Hz)
  • DC12V 500ｍA
  • About 4.2kg (including the rail)
  • 150cc
  • Reverse rotation when overloaded, Forward rotation when restored
  • HS-35RB (M3.5)
    HS-40RB (M4.0)
    HS-50RB (M5.0)
  • 134(W)×275(D)×136(H)
  • For automatic assembly machines
  • 1 installed standard rail, 1 guide plate, 1 hexagonal wrench (width across flats 2mm)

Range of screws
that can be supplied

Range of screws<br>that can be supplied
Model Nominal screw diameter (D)Head diameter(∅) (H) Head thickness(mm) (L)Shaft length(mm)
Feeder Unit only Feeder Unit (with rail unit) Rail unit only
HS-450RB HS-35RB (with HS-R35RB) HS-R35RB M3.5 4.8-8.0 0.5-8.0 5.6-18
HS-40RB (with HS-R40RB) HS-R40RB M4.0 5.4-8.0 0.5-8.0 6.4-18
HS-50RB (with HS-R50RB) HS-R50RB M5.0 6.2-10.0 0.5-8.0 8.0-18

Series Comparison

Model

Screw capacity

Over load protection circuit

Driver type

For manual operation HS (2 Models in Total)
  • 150cc
  • Reverse rotation when overloaded, Forward rotation when restored
  • For manual operation

For automatic assembly machines HS-RB (3 Models in Total)
  • 150cc
  • Reverse rotation when overloaded, Forward rotation when restored
  • For automatic assembly machines
